Description

JACK C4 FULLY AUTOMATIC OVERLOCK SEWING MACHINE.

COMES WITH HEAD, TABLE, STAND, THREAD STAND AND MOTOR. 110V.

JACK Overlock C4

A series of high-performance 3-, 4- and 5-thread overlocks, equipped with an integrated energy-saving motor mounted in the head directly on the machine’s main shaft (DIRECT DRIVE system), which guarantees quiet and reliable operation and lower power consumption. The modern design of the machine provides better ventilation of the motor and thus faster and more efficient operation, and as a result, a longer machine life. The world’s first industrial overlock with a built-in operation panel with voice functions and a Reset button to restore factory settings.

Technical parameters:

sewing speed: 7000 stitches / min
height of foot lifting: 5 mm
positioning of needles
integrated backlight with LED diodes

2 YEAR WARRANTY.

EXTRA NEEDLES.

Three Operation Modes, Easy to Change

Full Intelligent Mode: Machine works automatically without foot Semi-intelligent Mode: Machine works with automatic sensor, automatic presser foot lifter, automatic trimming Computerized Mode: Machine works according to workers operation

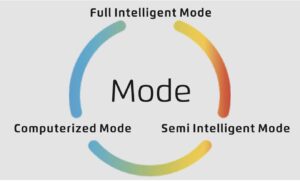

Dixie Tailoring Supply Infographic displaying three modes—Full Intelligent, Semi Intelligent, and Computerized—in a circular layout around the word "Mode," for the JACK C4 Fully Automatic Overlock Sewing Machine. Tailoring Supplies

Oil Control Effectively, High Yield

All inclusive needle bar and oil supply system, avoid to oil leakage.

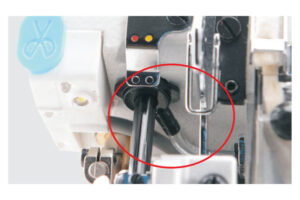

Dixie Tailoring Supply Close-up of the JACK C4 Fully Automatic Overlock Sewing Machine mechanism, showing metal rods and parts, with a red circle highlighting a specific component for emphasis. Tailoring Supplies

One Key to Reset

Can choose back to user setting or factory setting

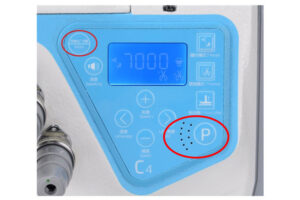

Dixie Tailoring Supply Close-up of the JACK C4 Fully Automatic Overlock Sewing Machine's blue control panel, showing buttons, a digital display reading "7000," and red-circled areas labeled "Reset" and "P. Tailoring Supplies

One-shaft Design, Stable and Durable

Reduce machine troque, machine works more stable.

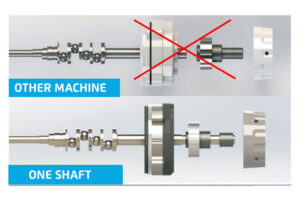

Dixie Tailoring Supply Comparison of two assemblies: the top, labeled "Other Machine," shows multiple shaft components crossed out, while the bottom, labeled "JACK C4 Fully Automatic Overlock Sewing Machine," features a streamlined single shaft design. Tailoring Supplies

The Highest Speed Can Reach 7000 S.p.m

The efficiency of C4 is 35%-100% faster than normal machine.

Dixie Tailoring Supply Stacks of gold coins increasing in height with a red upward arrow, topped with a gift bow, and the words "JACK C4 Fully Automatic Overlock Sewing Machine" in red text. Tailoring Supplies

Tech specs

Needle	Needle Number	Thread Number	Needle Guage（mm）	Stich Width（mm）	Stitch Length（mm）	Differential Ratio	Height of Preeser Foot（mm）	Sewing Speed（S.p.m）	Volume（mm）	Weight(kg)
14#	2	4	5	24	3.8	0.7-2	5	7000	525360510	27.9/35.88
11#	1	3	——	4	3.8	0.7-2	5	7000	525360510	27.9/35.88
11#	1	3	——	4	3.8	0.7-2	5.5	7000	525360510	27.9/35.88
9#	1	3	——	1.5	3.8	0.7-2	5	7000	525360510	27.9/35.88
11#	2	4	2	4	4.6	0.7-2	6	7000	525360510	27.9/35.88
11#	2	4	2	4	4.6	0.7-2	6	7000	525360510	27.9/35.88
14#	2	5	3	5	3.8	0.7-2	5	7000	525360510	27.9/35.88
14#	2	5	5	5	3.8	0.7-2	5	7000	525360510	27.9/35.88
14#	2	5	3	4	3.8	0.7-2	5	7000	525360510	27.9/35.88
19#	2	5	5	6	5	0.8-1.5	7	7000	525360510	27.9/35.88
11#	3	6	3×2	4	3.8	0.7-2	5	7000	525360510	27.9/35.88
