Direct-drive, High-speed, 1-needle, Lockstitch Machine with Automatic Thread Trimmer
Good Value Models with JUKI Quality and Friendly to Operators
The DDL-8000A Series maintains JUKI’s established seam quality and is provided with narrowed-down essential and simplified functions.
It helps improve the work efficiency through operator assistance with its audio guidance.
Automatic turning OFF function of the operation panel back light
The backlight of the operation panel is automatically turned OFF when the operation panel is not operated for a certain period of time. (Setting time: 1- 20 minutes)
LED hand light
Illuminance of the LED hand light is adjustable in five levels. It can be adjusted to the illuminance to help the operator to easily carry out work around the needle, thereby helping increase work efficiency.
Shorter-thread remaining type DDL-8000AB
The shorter-thread remaining type model is the high-performance sewing machine provided with the thread clamp device which is used at the beginning of sewing and the shorter-thread remaining function which is used at the end of sewing.
With these features, manual thread nipping work is no longer required.

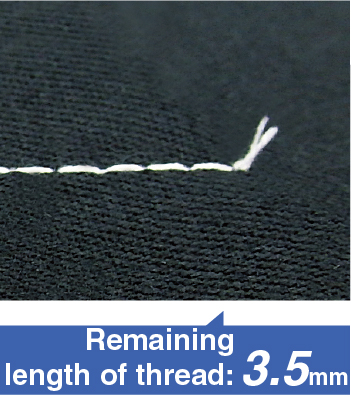

Double blades drive rotary knife type thread trimmer has been adopted. Since this thread trimmer blades intersect with each other just under the needle entry, an appropriate length of needle thread is ensured without being affected by the stitch length and the length of thread remaining on the material is 3.5 mm or less with consistency.
Voice guidance for assisting the operator (newly-developed LCD panel)
This sewing machine is provided as standard with the voice guidance with clock function.
Production support function
The target number of products, work progress (current number of products produced, achievement rate) and the operating rate of the sewing machine are displayed on the control panel provided that the initial data have been properly set. These pieces of data that provide an indication for the operator will contribute to enhanced production support.

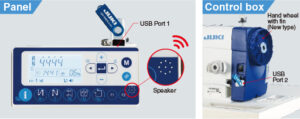

USB port standard equipment
Since the USB port is provided as standard for the operation panel and control box, sewing data can be managed and the relevant software can be upgraded with ease.
