- Express delivery

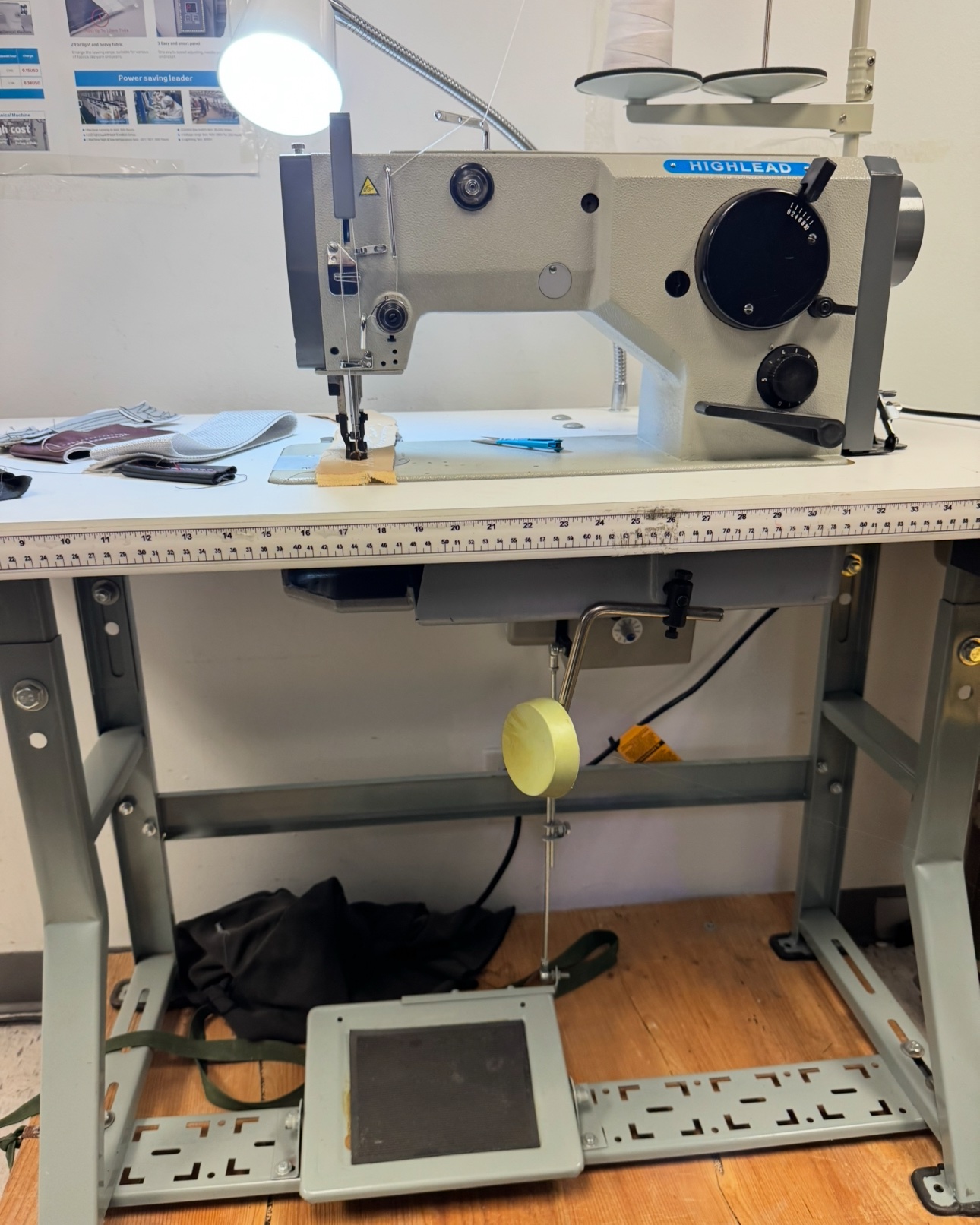

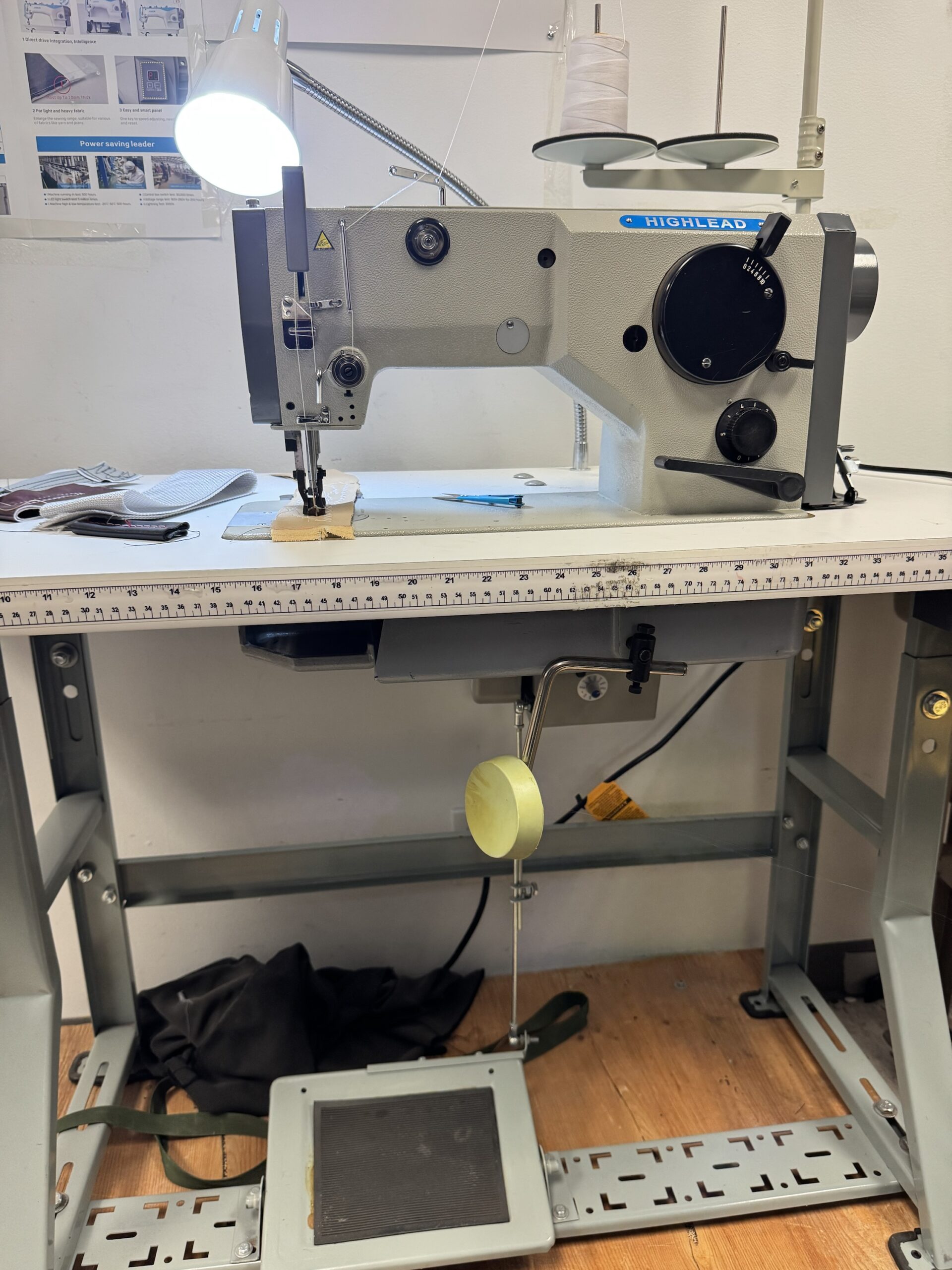

Machine comes with :
Head
Table
Stand and thread stand
Servo motor speed adjustable 110v Canadian plug
Comes serviced. 1 month warranty from us.
The Highlead GG0328-1 is a walking foot Zigzag sewing machine designed for use with medium-heavy weight materials.
It features an adjustable top feed walking foot and bottom feed mechanism that is suitable to sew medium-heavy weight materials such as canvas, plastics, webbing, leather, synthetics, tarpaulin + heavier than normal standard fabrics.
A wide range of sewing threads can be used, with the GG0328-1 being able to sew with up-to size 20* synthetic thread (or size 30 cotton thread) + V69, V92 & V138* heavy duty threads etc.
This Highlead model employs a parallel vertical needle bar motion for stronger striking power and a semi-automatic lubrication system which can reduce servicing costs.
A large Zigzag width of up-to 10mm + a stitch length of up-to 5mm is available and fully adjustable by the operator.
Walking foot Zigzag from Highlead
The sewing hook & base containing the lower bobbin is twice the normal size, resulting in less bobbin changes, which is of particular use when using thicker than normal threads.
DPx35 sewing needles are used with this machine between sizes 100 to 140
Large sewing machine hook Zig Zag
Highlead GG0328-1 can be used on Sails, leather goods, bags, canvas/plastic, handbags, nets, bandages, straps, Velcro, Neoprene, body supports etc.
Features:
Walking Foot
Medium heavy weight Zigzag
Large Hook & Base
Up-to 10mm large Zigzag width
Reverse stitch lever
Vertical thread take-up assembly
Easy width adjusting levers
Semi automatic oil lubrication
Automatic hook lubrication
Specification:
Max sewing speed: 1800rpm
Stitch length: 0-5mm
Zigzag width 0-10mm
Needle bar stroke: 36mm
Take up stroke: 82mm
Presser foot lift by hand: 7mm
Presser foot lift by foot: 12mm
Working space: 260mm x 115mm
Needle size: DPx35 size 100 to 140.
Highlead GG0328-1 Walking Foot medium heavy Zigzag
